Single Flute End Mill Bits 1 8in Shank 22mm Tungsten
10 sold in last 24 hours
- [TUNGSTEN CARBIDE] Made from premium tungsten carbide to deliver strong hardness heat resistance and lasting sharpness. Built for repeated milling tasks with clean accurate cutting performance.
- [1 8 INCH SHANK] Features a 3.175mm 1 8 inch cutting diameter and 1 8 inch shank that fits many CNC routers and milling machines. A practical size choice for hobby users and workshop setups.
- [SINGLE FLUTE DESIGN] The single flute geometry supports fast chip evacuation during high speed cutting. It helps reduce clogging and improves cut smoothness on soft materials in daily machining work.
- [SOFT MATERIAL CUTTING] Ideal for acrylic PVC MDF density board wood PCB and similar soft materials. Great for crafting sign making model work woodworking and detailed CNC routing applications.

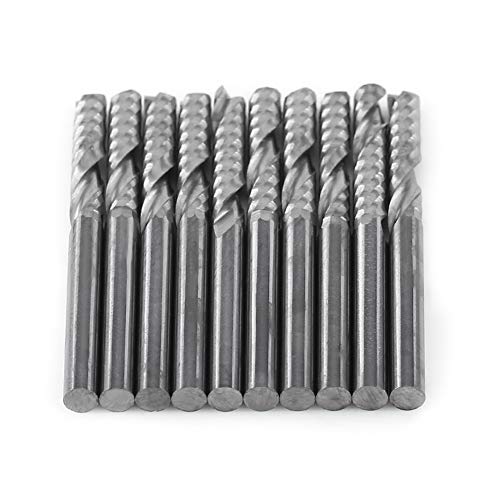

- [10 PIECE VALUE PACK] Includes 10 square end single flute end mill bits with 22mm cutting length and about 38mm overall length. Keeps replacement tools ready so projects continue with less interruption.
Tags |
Estimated shipping
Select a product to estimate shipping.Description:
This is a set of single flute end millscutting tool used in industrial milling applications. It is distinguished from the drill bit in its application, geometry, and manufacture. Singleflute end mills are used for superior chip evacuation in high speed milling. These end mills are made of tungsten carbide which will tolerate a lot more heat while still keep a good hardness.
End Mill Bits 10 Pcs 1/8” Shank Single Flute End Mills Drill Bit

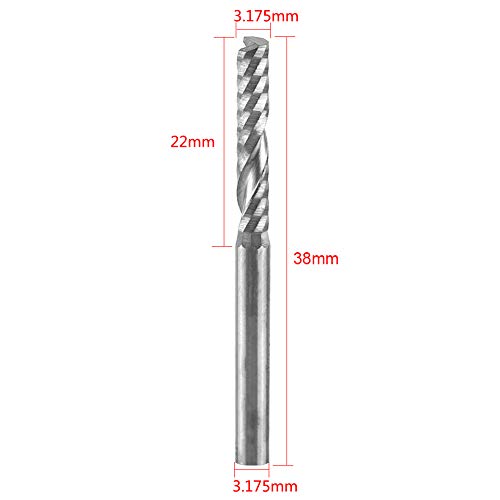

Specifications:
Material: Tungsten carbide
Cutting Edge Dia.: 3.175mm(1/8in)
Flute: 1
Shank Dia.: 3.175mm (1/8in)
Cutting Edge Length: 22mm(0.86in)
Overall Length:Approx. 38mm(1.5in)
Cutting On: Acrylic, PVC, MDF, density board, wood, etc
Quantity: 10pcs
Package Includes:
10 x End Mills
Features:
Thisset of end millsaremade from high qualitytungsten carbidefor good hardness and the cutting edge is quite .
1/8inch cutting edge and 1/8inch standard shank diameter would fit for many milling machines or CNC cutting machines.
Single flute designed end mill with cutting edge would offer a smooth cutting surface and chip clearing.
There are total 10 pieces end mills in this set that would be great replacement.
Usuallythese end mills are used for cutting Acrylic, PVC, MDF, density board, wood and many other soft materials.
Product details
| Main Specification | |
|---|---|
| Manufacturer | Yosoo Health Gear |
| Unit Count | 1 Count |
| Cutting Diameter | 3.18 millimeters |
| Brand | Yosoo Health Gear |
| Cut Type | Single Flute |
| Cutting Length | 22 millimeters |
| Shape | Round |
| Technical Details | |
| Part Number | Yosoo Health Gearur8316kexi |
| Material Type | Tungsten Carbide |
| Number of Flutes | 1 |
| End Cut Type | Single flute end mill |
| Tolerance Held | Precision |
| Number of Cutting Edges | 10 |
| Style | |
| Finish Types | Unfinished |
| Others | |
| Item Highlight | 10 pcs carbide cutters or for CNC router milling or acrylic PVC MDF wood cutting or fits 1 8in collet tools |
| Product Type | Drill |
| Item Dimensions L x W | 1.5"L x 0.13"W |
| Size Name | default |
